Portable overhead line measuring devices
Measure worldwide the contact wire height, contact wire position, etc. at the push of a button. Steinmeyer laser instruments are suitable for all gauges and tracks. Stay independent of the weather (protection class IP54) and without having to shut down tracks.
Up to 0,001 m | More than 1400 | With more than 50 |
All-round for various infrastructures in local and long-distance traffic

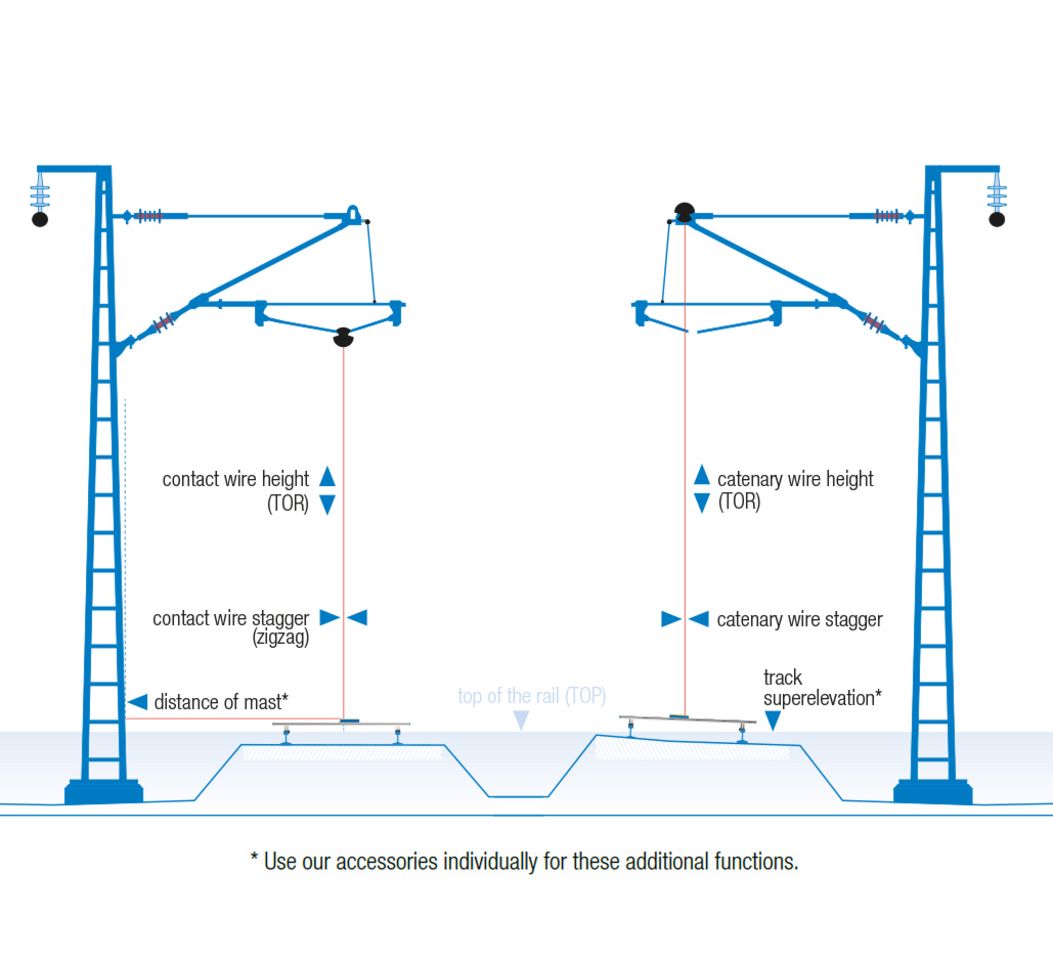

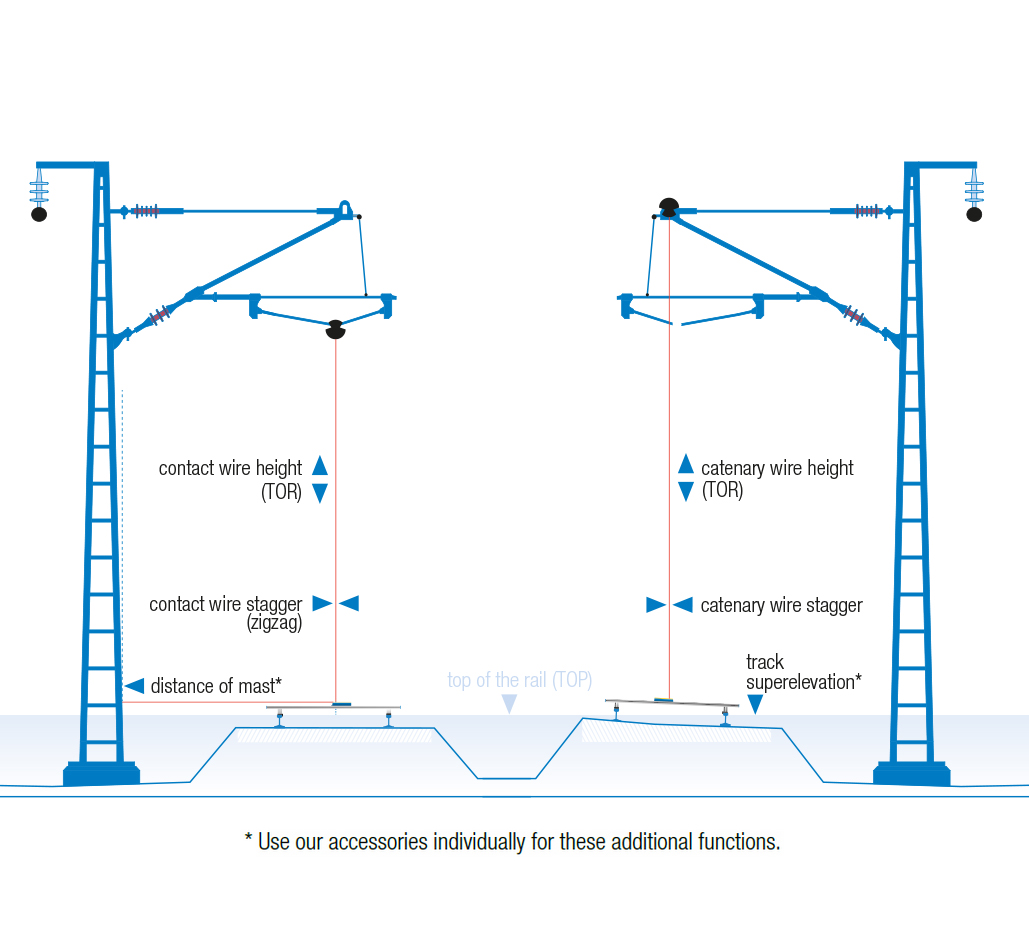

Worldwide measuring - adjustable on all gauges & tracks:
- Contact wire height
- Contact wire stagger (zigzag)
as well as additionally:
- Catenary wire hight
- Catenary wire stagger
- Brigde height
- Tunnel height
- Crossing power lines
with accessories:
- track superelevation, angle
- Distance of Mast
- complete, digital measurement data
Project planning and construction of overhead contact line systems
Implement your installation work and building projects even faster, easier and cost minimized:

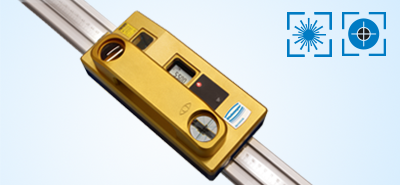

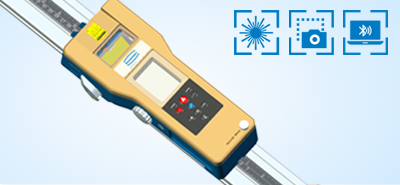

fastFast measurement by robust, light and almost self-explanatory handling | easysimple targeting of lines with FM4-optics or FM5-4-fold point camera finder | cost-optimizedminimize project costs with fast, cost-optimized and 100% reliable assembly equipment |
Inspection and maintenance of existing contact wires
Minimize your maintenance costs, malfunctions and delays:
without service providerAvoid malfunctions and failures with quick, cost-minimized & precise inspections without service providers | flexiblemake your work easier with flexible measurements in all weather conditions and without shut down tracks | documentableminimize your documentation effort with integrated software including import and export function |
