Operation and manuals

Preparing

The measuring bar will be positioned right-angled to the track rail with the insulated stop. The measuring device has to be inserted into the measuring bar via the guide.

Measurement

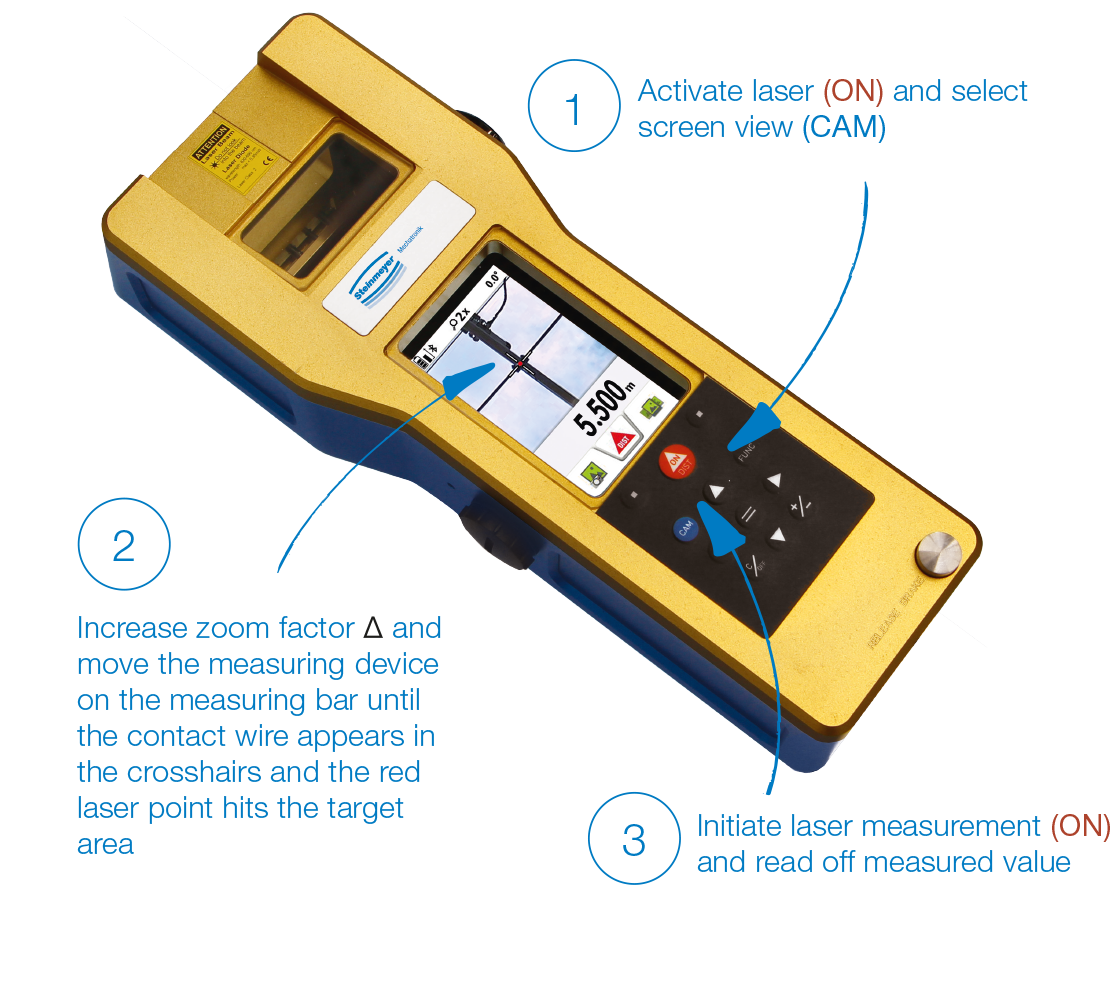

  1. Activate laser (ON) and select screen view (CAM)
  2. Increase zoom factor (^) and move the measuring device on the measuring bar until the contact wire appears in the crosshairs and the red laser point hits the target area
  3. Initiate laser measurement (ON) and read off measured value

Optional: Digital capture of the measured values

With the FMcapture software you can digitally capture, save, import and export the measured values. Click here for more information.

Video guide
